ROS2 Journey VIII

1. Prerequisite

sudo apt install python3-colcon-common-extensions

colcon does out of source builds. By default it will create the following directories as peers of the src directory:

• The build directory will be where intermediate files are stored. For each package a subfolder will be created in which e.g. CMake is being invoked.
• The install directory is where each package will be installed to. By default each package will be installed into a separate subdirectory.
• The log directory contains various logging information about each colcon invocation.

Create a workspace

mkdir -p ~/ros2_ws/src
cd ~/ros2_ws
git clone https://github.com/ros2/examples src/examples -b humble

In the root of the workspace, run colcon build. Since build types such as ament_cmake do not support the concept of the develspace and require the package to be installed, colcon supports the option --symlink-install. This allows the installed files to be changed by changing the files in the source space (e.g. Python files or other not compiled resourced) for faster iteration.

colcon build --symlink-install

colcon test

. install/setup.bash

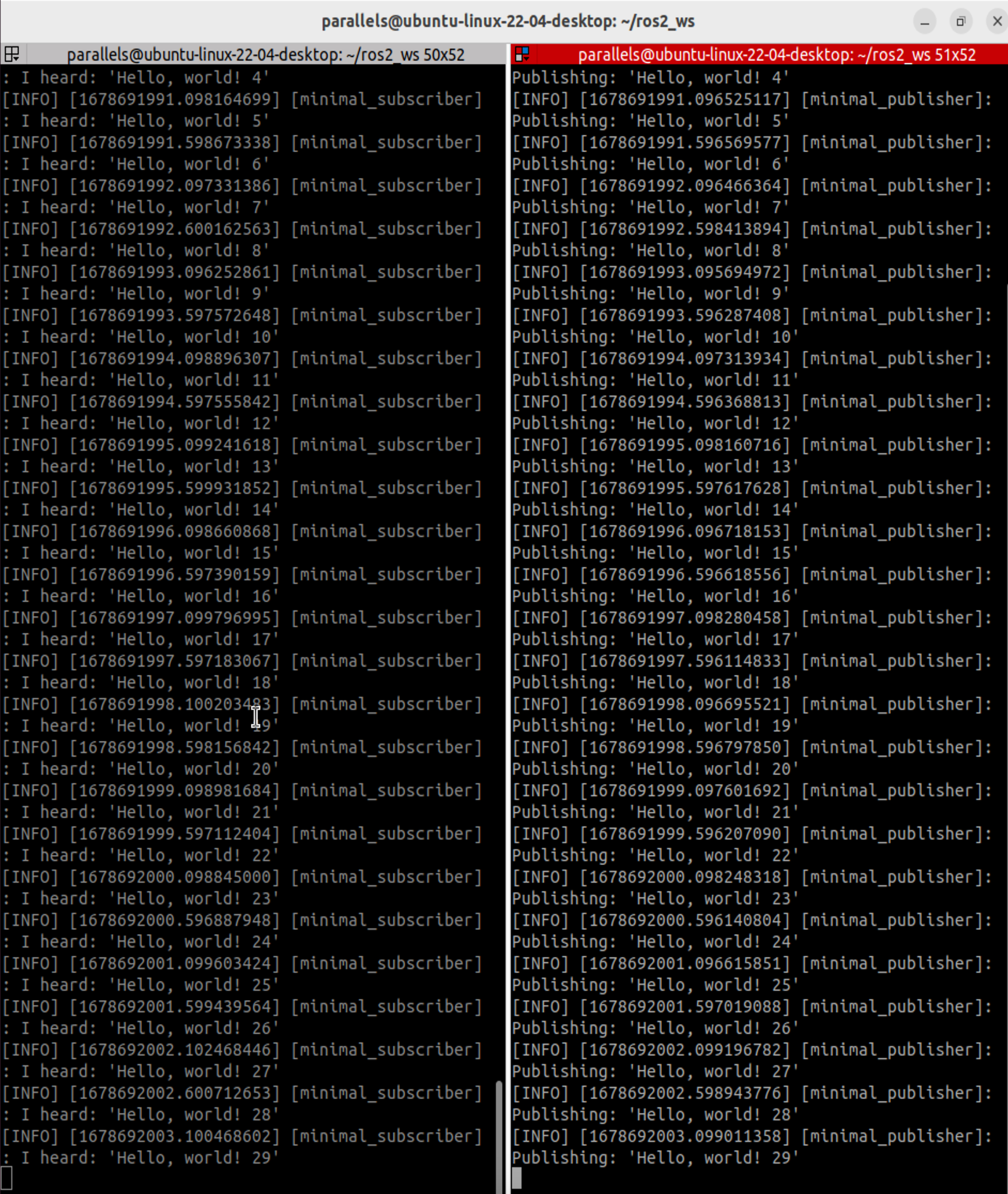

ros2 run examples_rclcpp_minimal_subscriber subscriber_member_function

ros2 run examples_rclcpp_minimal_publisher publisher_member_function

The command colcon supports command completion for bash and bash-like shells if the colcon-argcomplete package is installed.

echo "source /usr/share/colcon_argcomplete/hook/colcon-argcomplete.bash" >> ~/.bashrc
